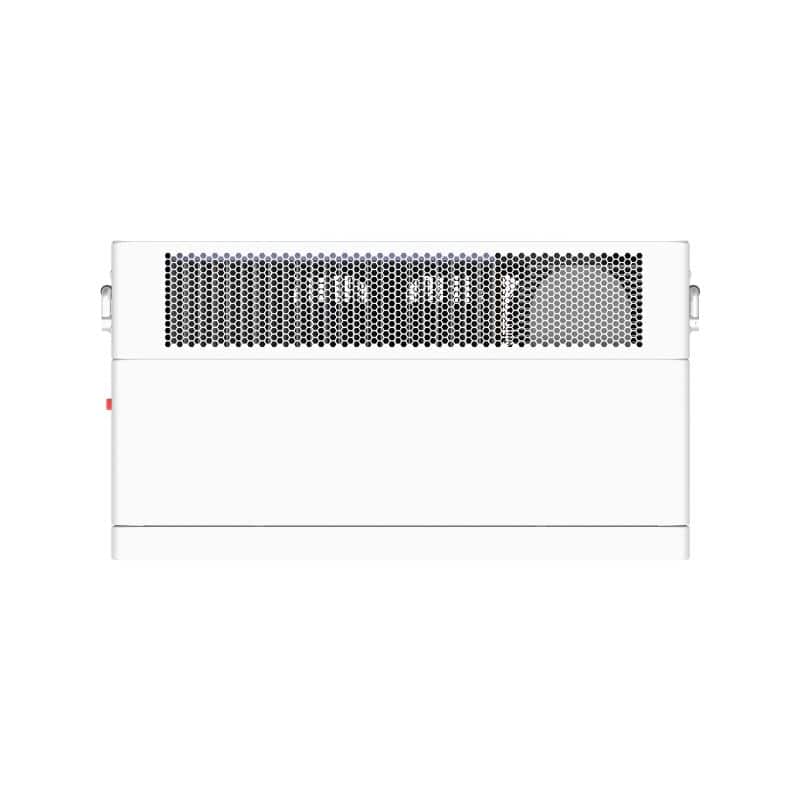

ELS Series (220/230/240VAC) 7.5K-15K Residential Hybrid Inverter
The ELS Series 7.5–15kW Solar Hybrid Inverter is designed for residential energy storage systems that require higher power capacity and flexible solar integration. It combines solar generation, battery storage, and grid connection in one intelligent solution for home energy management. With support for large photovoltaic arrays and high battery charging capability, the inverter enables efficient solar utilization and reliable household power supply. The ELS Series 7.5–15kW is suitable for homes with larger solar installations and higher electricity demand.
- 2-year warranty
- Worldwide support
- Certified & compliant
Configure your model
Select Model
Grid Type
Max Output Apparent Power (on-Grid)
Max PV Input Voltage
Battery Voltage Range
Max Continuous Charging And Discharging Current
Rated Output Power (off-Grid)
Battery Type
Max PV Input Power
Number Of Mppts
Inverter Output Voltage
Max PV Input Current Per MPPT
Charging Technology
Display
Output Voltage
Select every option to reveal the matching model.
Quantity
1
Ships from EU warehouse - typically 3–5 business days
Frequently Bought Together
Recommended combinations will appear here.
Specifications
Highlights
- Reliable Outdoor Operation: IP65 protection; Built-in Type II surge protection; Optional function: RSD, AFCI..
- High Performance: 150% PV oversizing capability; Max. PV input power: 22500W 4 MPPTs; 20A per string
- High-power output and rapid energy storage; Max. charge/discharge current: 275A Overload capability: 200% for 10s

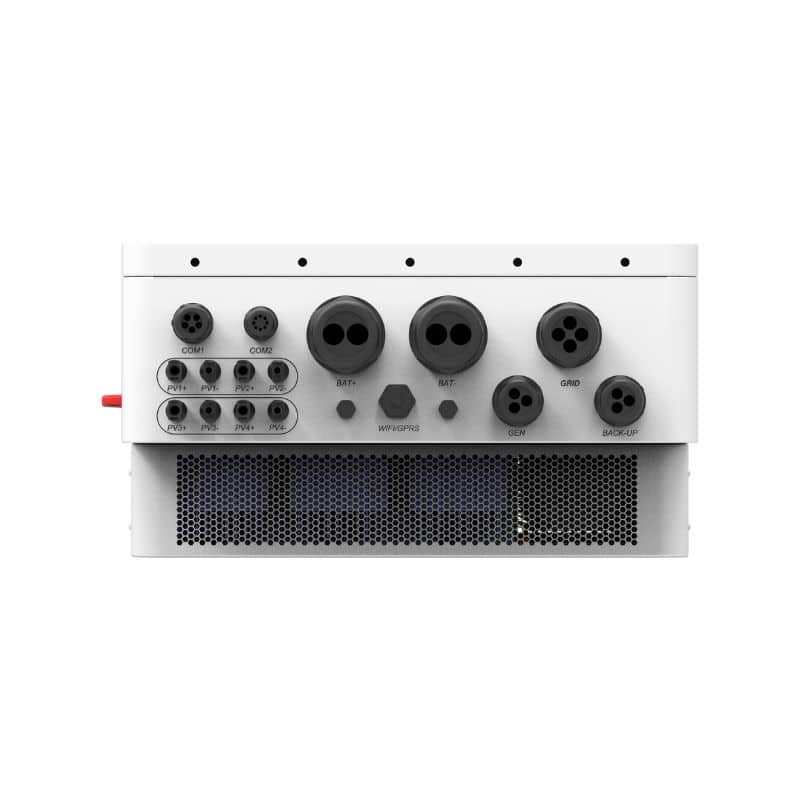

- Smart Power Management: Smart interface: ① Generator connection; ② Load connection; ③ AC coupling with grid-tied PV inverters UPS-level switching <10 ms
- Parallel Capability: ① Up to 6 units in parallel (On-grid & Off-grid); ② Multi-battery parallel support: Independent or shared battery bank; Zero export function; Feed-in power limit
- User-Friendly Monitoring: Standard color LCD display; Optional WiFi/GPRS for local and remote operation
