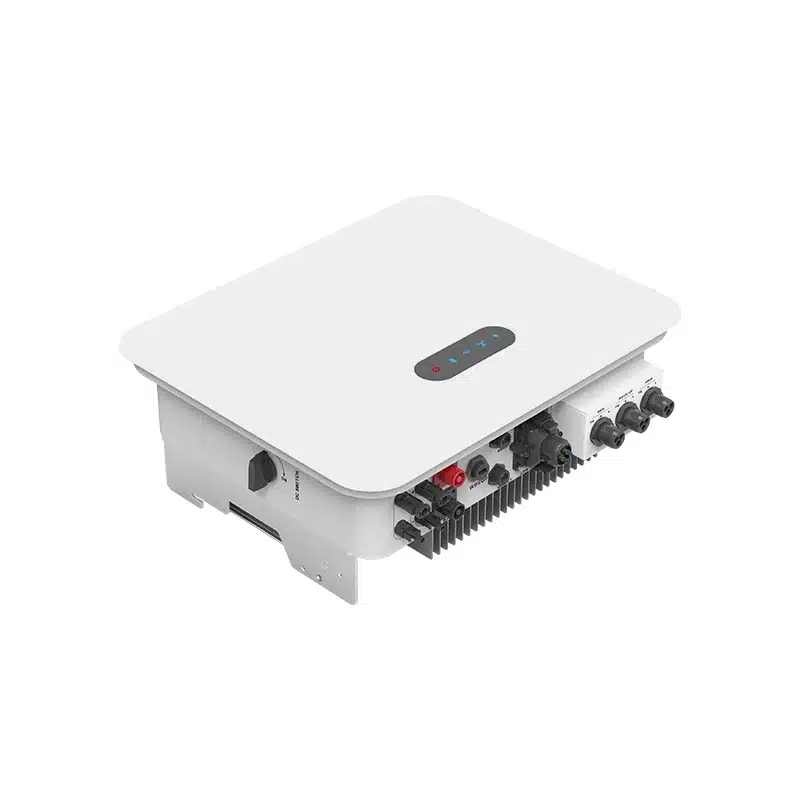

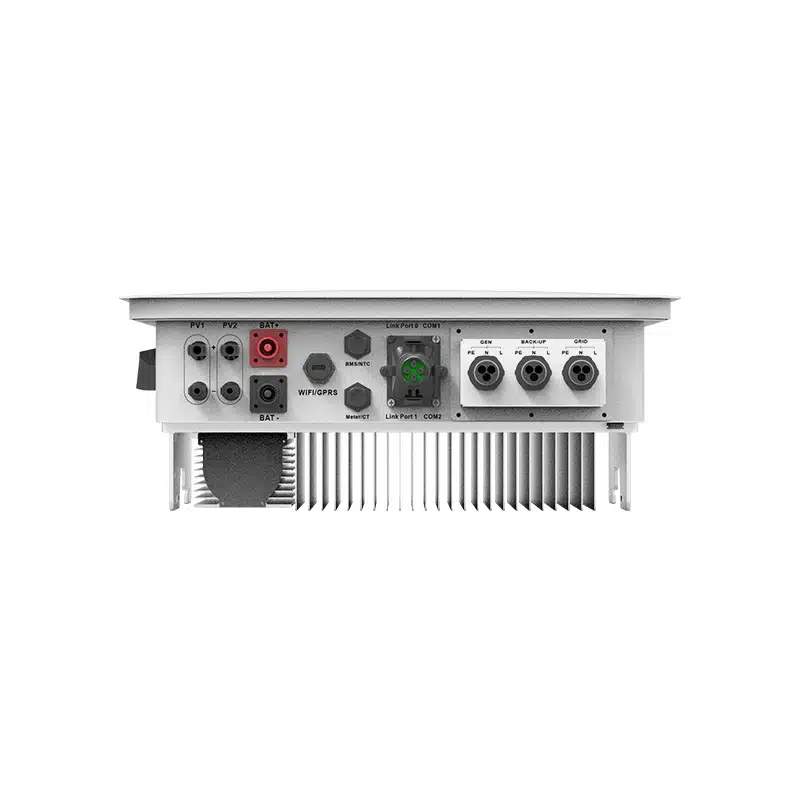

ELS Series (220/230/240VAC) 3K-6K Residential Hybrid Inverter

Versatile Power Solution with ELS Series Residential Hybrid Inverter The ELS Series Residential Hybrid Inverter is designed to provide a flexible and reliable power solution for modern homes. It supports multiple charging options, including utility power, generators, and solar energy, ensuring continuous power supply under any circumstances. Seamless Power Management and Energy Savings This series offers versatile power supply modes, including grid bypass, off-grid operation, and on-grid power feeding, allowing you to optimize energy usage according to your needs. With intelligent energy management, it powers your home, stores excess solar energy for later use, and exports surplus power to the grid, significantly reducing electricity costs and dependency on the grid. Efficient, Flexible, and Reliable Available in models ranging from 3K to 6K (ELS3K, ELS3K6, ELS4K, ELS4K6, ELS5K, ELS6K), the ELS Series Residential Hybrid Inverter provides high efficiency and flexible battery compatibility with Lithium and Lead-Acid batteries. Whether you need backup power during outages or want to maximize solar energy utilization, this inverter delivers a reliable and cost-effective solution.

  • 2-year warranty
  • Worldwide support
  • Certified & compliant

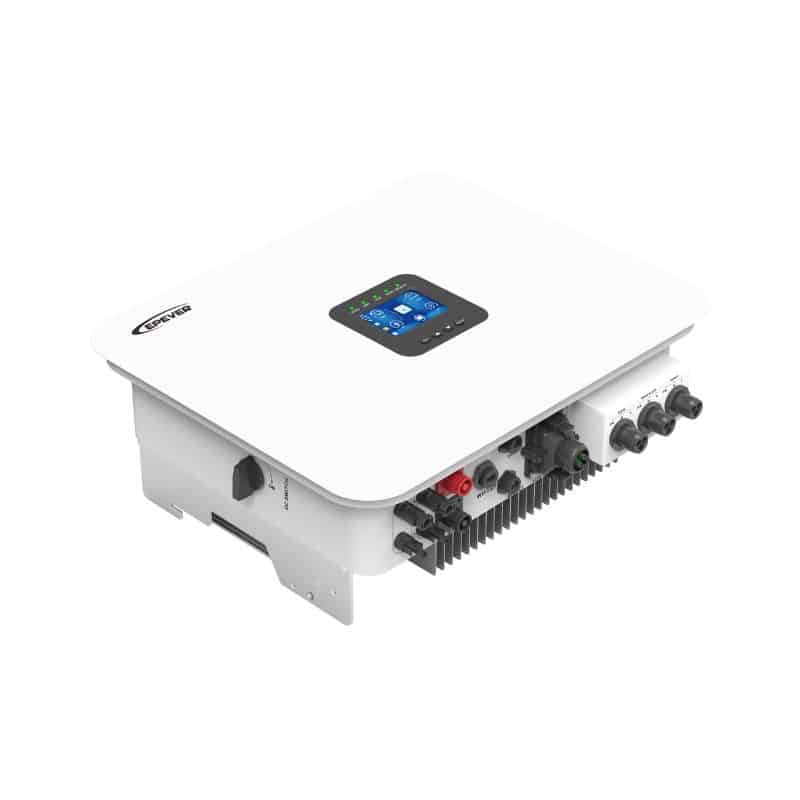

ELS LCD-1

Configure your model

Select Model
Grid Type
Max Output Apparent Power (on-Grid)
Max PV Input Voltage
Battery Voltage Range
Max Continuous Charging And Discharging Current
Rated Output Power (off-Grid)
Battery Type
Max PV Input Power
Number Of Mppts
Inverter Output Voltage
Max PV Input Current Per MPPT
Charging Technology
Display
Output Voltage

Select every option to reveal the matching model.

Quantity
1
Ships from EU warehouse - typically 3–5 business days

Frequently Bought Together

Recommended combinations will appear here.

Specifications

Highlights

  • Optimized Operation: Natural Cooling, Maintenance-free, Ultra-quiet
  • Superior Efficiency: Max. MPPT Tracking Efficiency: 99.9%; Max. PV Conversion Efficiency: 97.6%; Battery Charge/Discharge Efficiency: 94.6%
  • Protection and Durability: IP65; Overload Capability: Tested 1.5x rated power overload for 60 seconds; Continuous Max. Charge/Discharge Current: 120A
  • Flexibility and Connectivity: PV Power Oversize: Max. input up to 1.5x rated power; Dedicated Port: For generator connection, smart load management, or AC coupling; Single-Phase Parallel Connections: Supports up to 6 pcs
  • User Experience: Smart APP: User-friendly operation and monitoring; UPS-level Switching <10ms ; Optional Modules: RSD, AFCI
