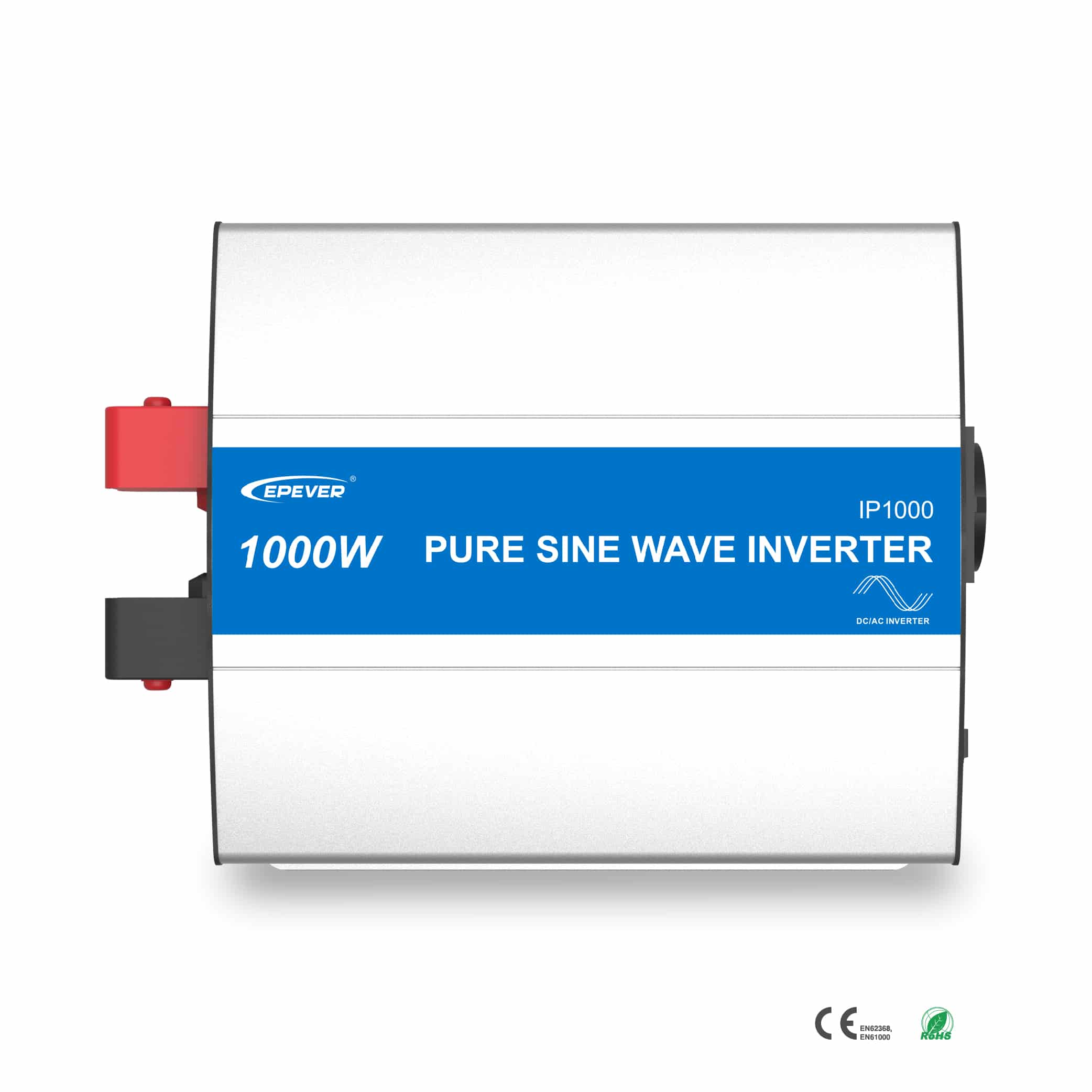

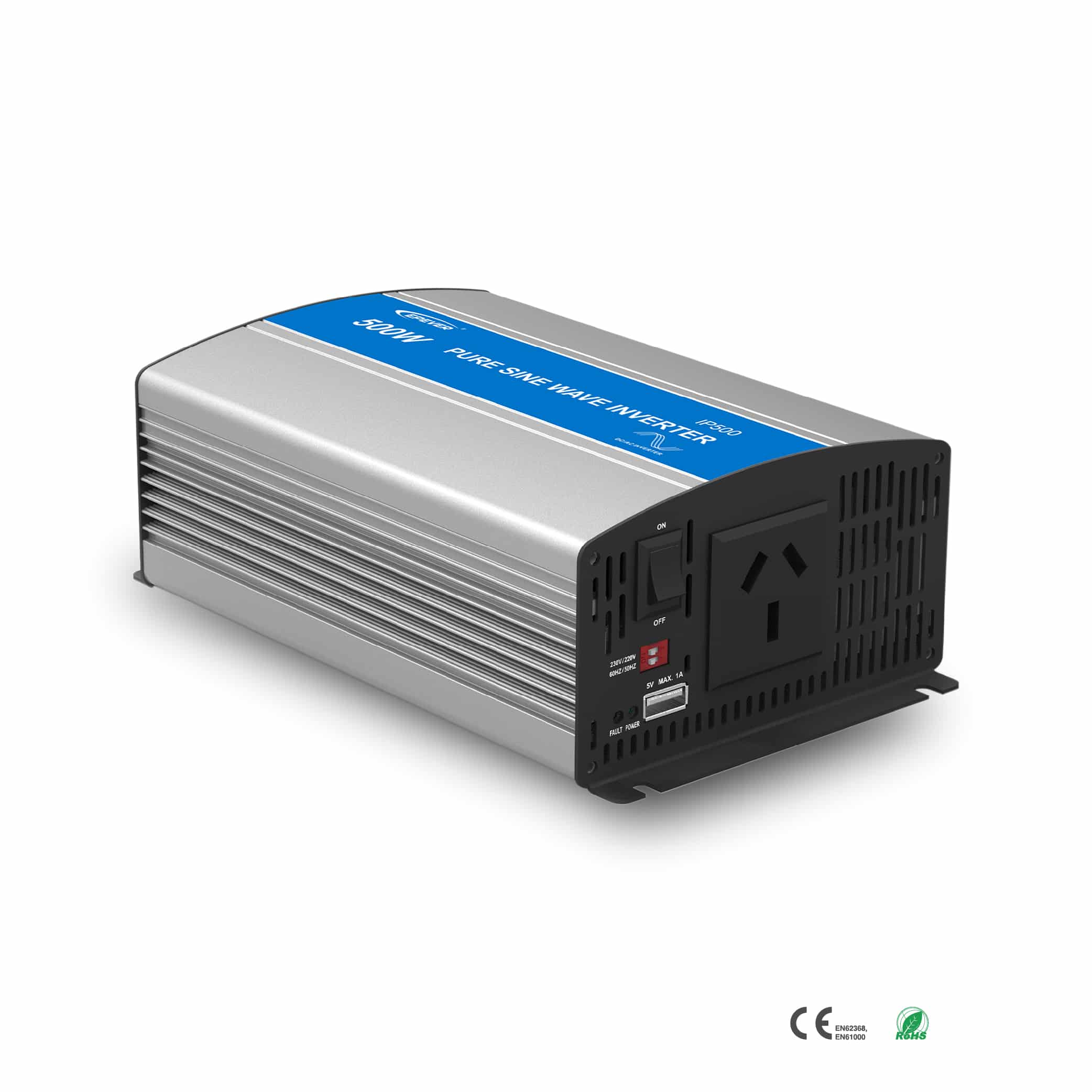

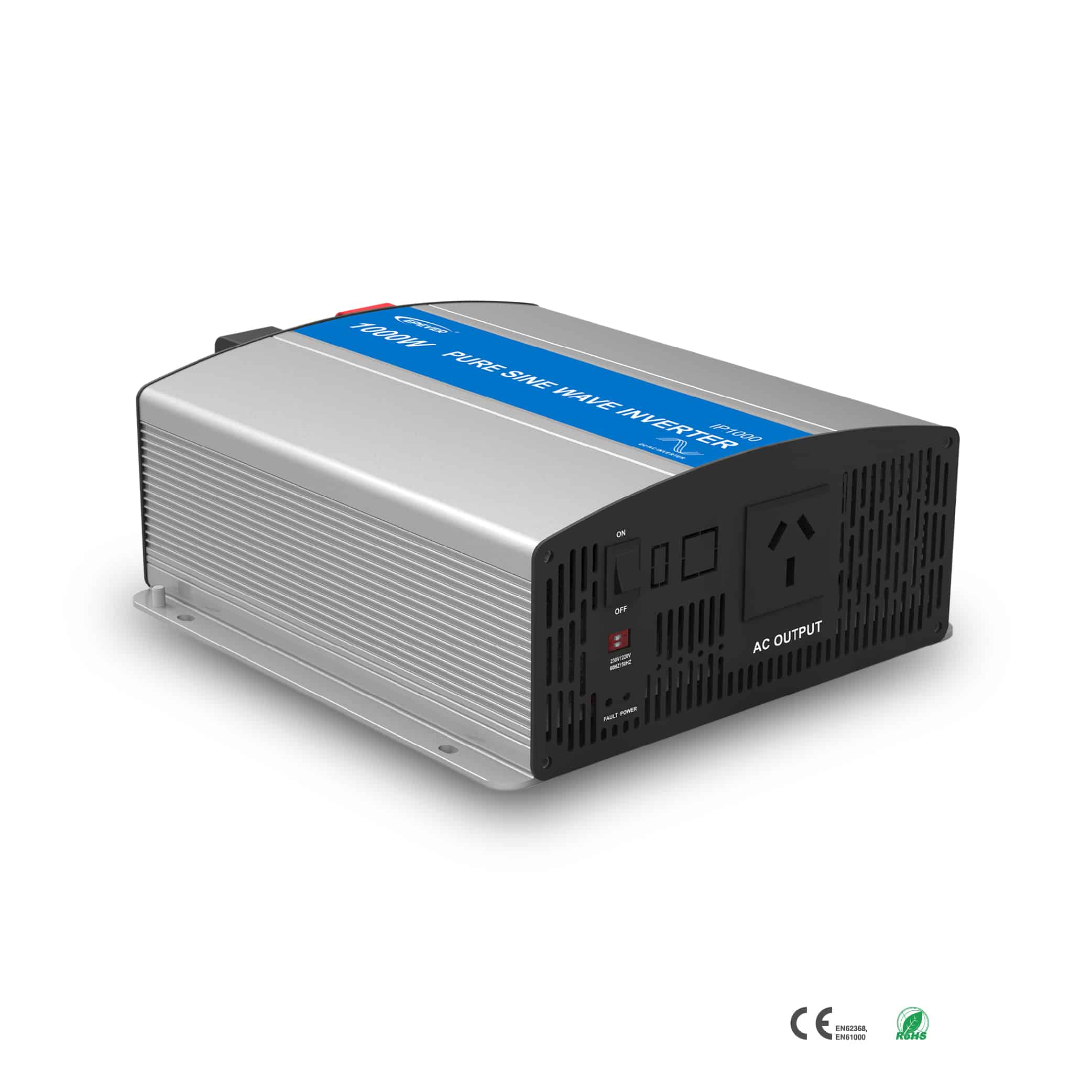

IPower Series(220/230VAC) 350~2000W Pure Sine Wave Inverter

IPower series is a pure sine wave inverter that can convert 12/24/48VDC to 220/230VAC(or 110/120VAC). The power is from 350VA to 2000VA. The inverter can be applied in many fields. Its wide input voltage range is ideal for solar system applications.

2-year warranty
Worldwide support
Certified & compliant

IPower Series(220/230VAC) 350~2000W Pure Sine Wave Inverter

Configure your model

Select Model

Battery Type

Inverter Output Voltage

Continuous Output Power

System Nominal Voltage

Output Voltage

Select every option to reveal the matching model.

Quantity

Ships from EU warehouse - typically 3–5 business days

Frequently Bought Together

Recommended combinations will appear here.

Specifications

Continuous Output Power: 280W
Output Power 15 Min.: 350W
Surge Power: 750W
Output Voltage: 220VAC(±5%) 230VAC(-7%～+5%)
Output Frequency: 50/60±0.1Hz
Output Wave: Pure sine wave
Output Distortion Thd: THD≤3%
Load Power Factor: 0.2-1(Load VA ≤ Continuous output power)
Rated Input Voltage: 12VDC
Input Voltage Range: 10.8～16VDC
Input Surge Voltage: ＜32VDC
Max. Output Efficiency: 91%
No-Load Current: ＜0.7A
USB Output: 5VDC/Max.1A
RS485 Com. Port: /
Dimension(lxwxh): 214×105.5×57.7mm
Mounting Dimension: 185.5×76.7mm
Net Weight: 1.0kg
Operating Temperature Range: -20℃~ +45℃
Relative Humidity: < 95%(N.C.)
Enclosure: IP20

Highlights

Safe design with input and output electrical isolation
Adoption of advanced SPWM technology, pure sine wave output
Optional output voltage220/230VAC (or 110/120VAC ), setted by DIP switch
Output frequency 50/60Hz, setted by DIP switch
LED indicators for working and fault status
Lower No-load consumption
Max. efficiency up to 95%
Input protection: Over voltage protection, low voltage protection
Output protection: Over load protection, short circuit protection
Over temperature protection: Temperature-controlled Fan Ventilation; Inverter turns off automatically when over temperature.
