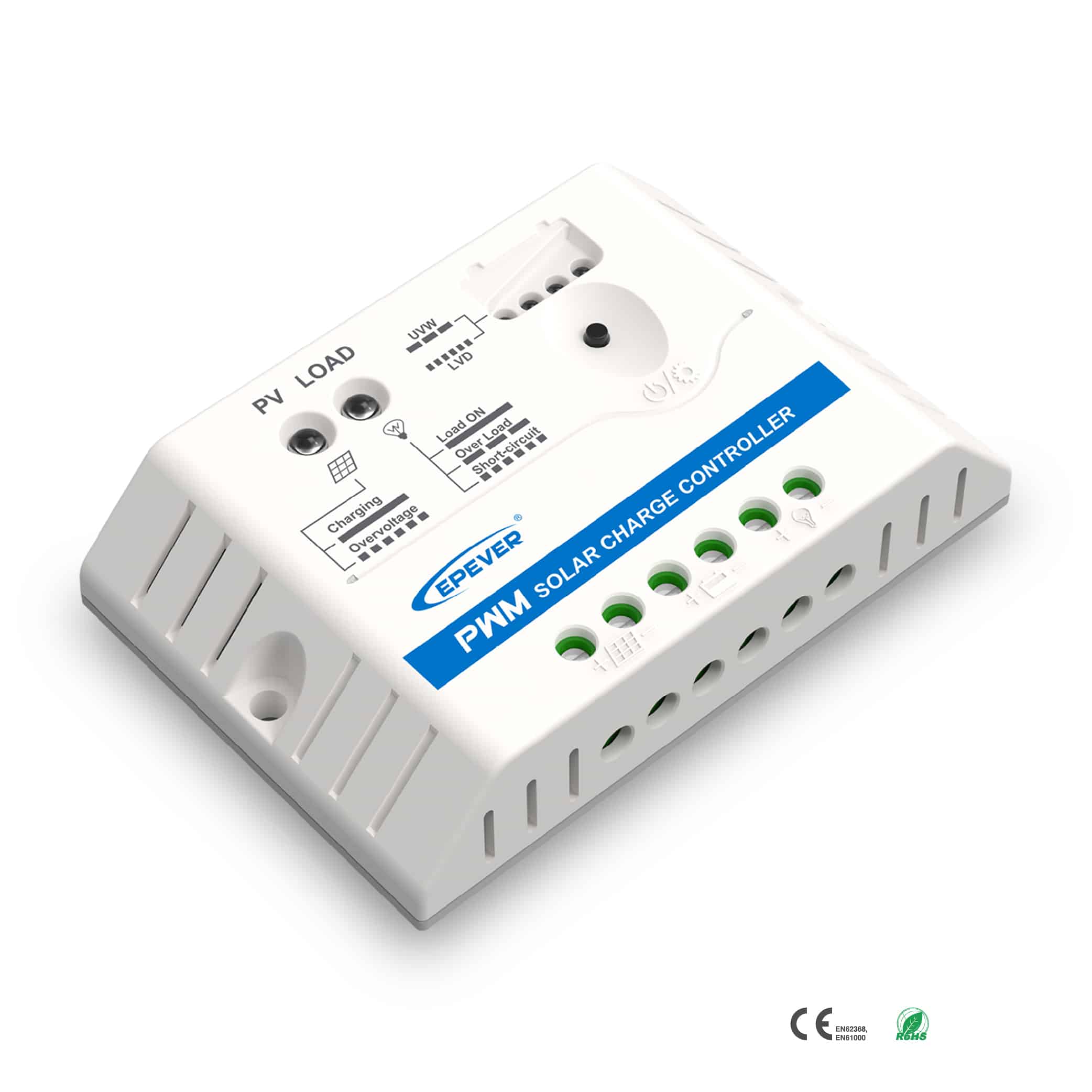

LS-E(EU) Series(5A~30A) PWM Charge Controller

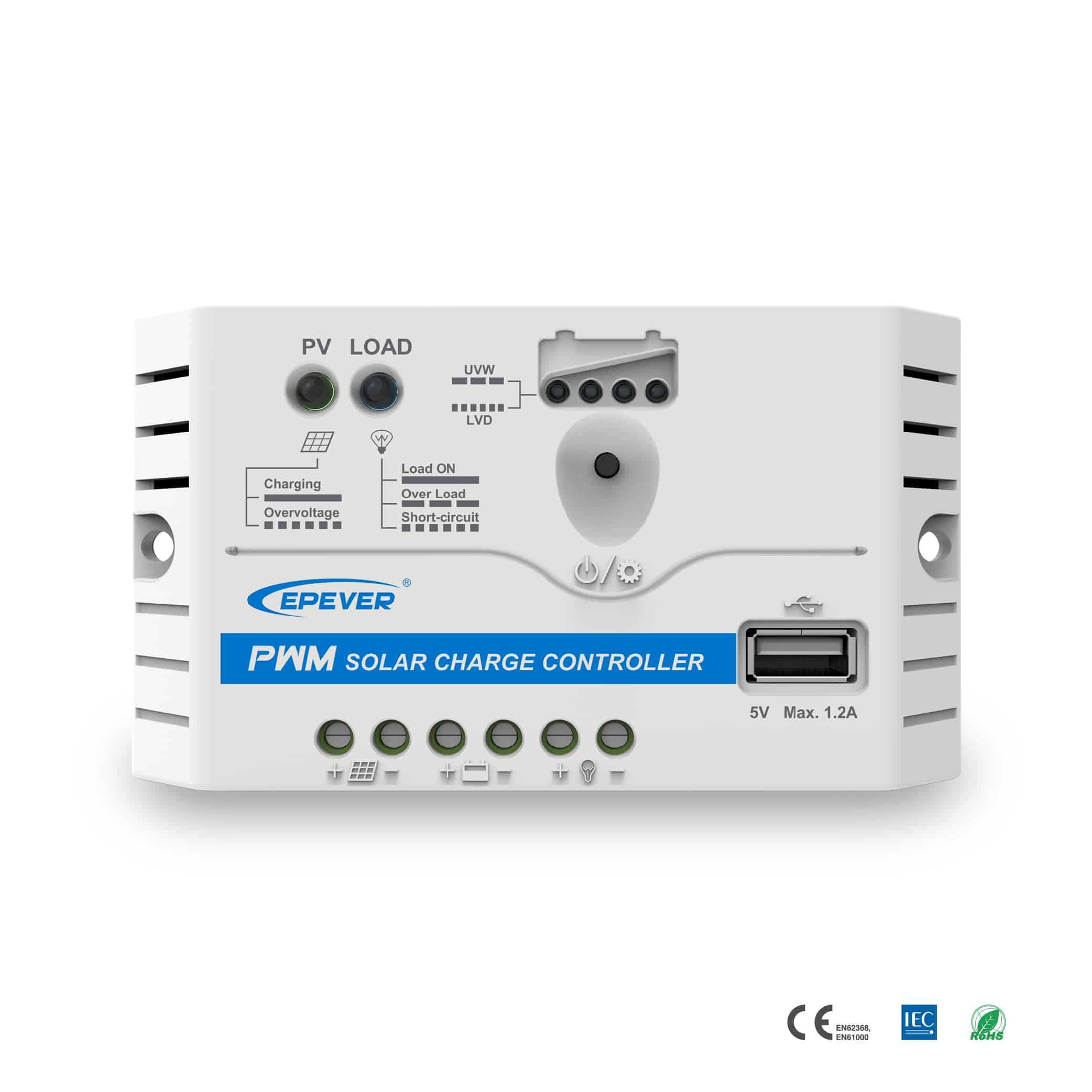

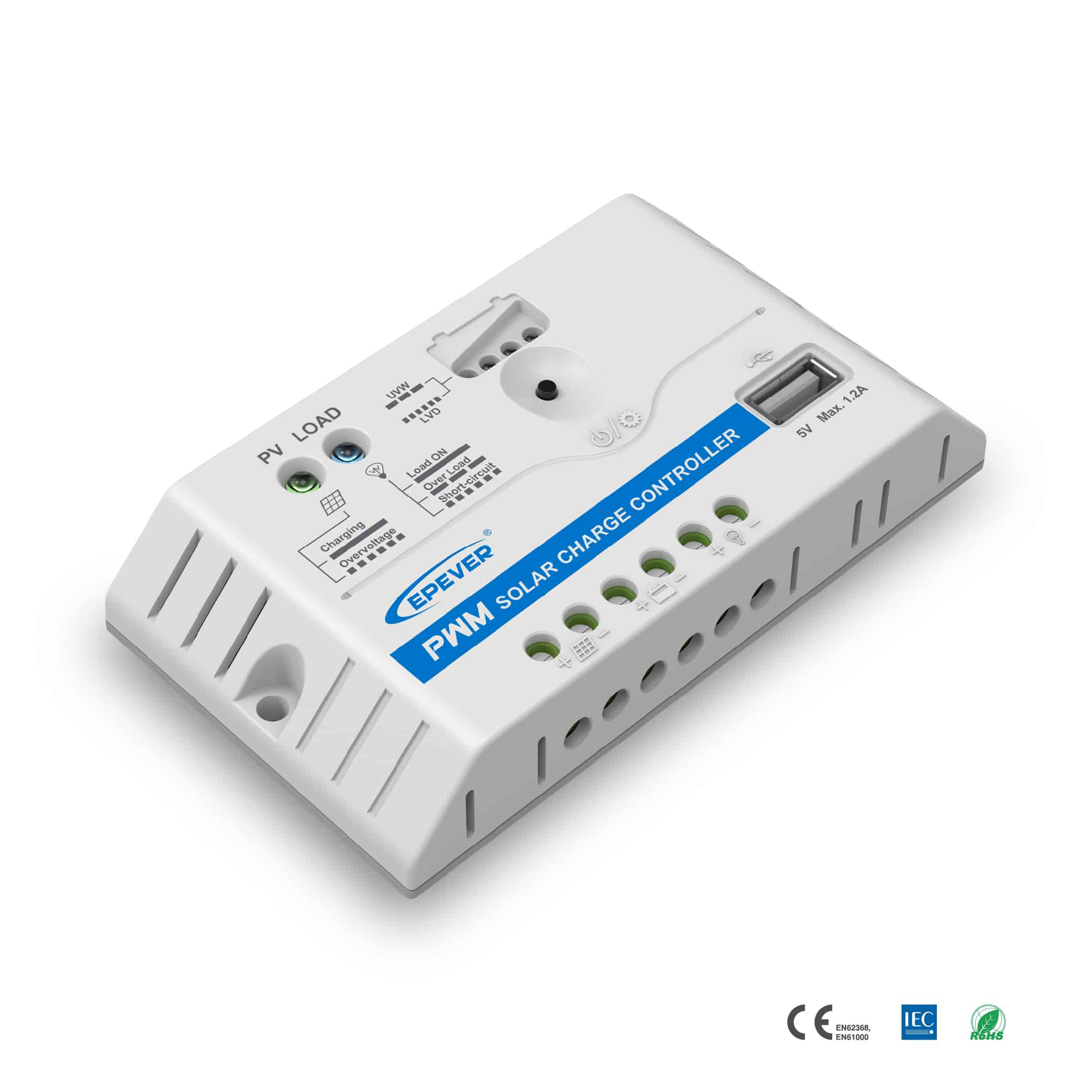

LandStar E(EU) series is a reliable, stable, and economical solar charge controller, easy to operate. Based on the LS-E series, the LS-EU series adds a +5V/1.2A USB terminal output which can charge mobile phones, power DC fans, and other DC electronic devices.
- 2-year warranty
- Worldwide support
- Certified & compliant
Configure your model
Select Model
Max PV Open Circuit Voltage
Battery Type
Application
Charging Technology
Display
Maximum PV Charging Current
Grounding
System Nominal Voltage
Maximum Discharge Current
Buit-In LED Power Supply
Select every option to reveal the matching model.
Quantity
1
Ships from EU warehouse - typically 3–5 business days
Frequently Bought Together
Recommended combinations will appear here.
Specifications
- Nominal System Voltage
- 12VDC
- Battery Type
- Sealed(Default)/Gel/Flooded
- Battery Input Voltage Range
- 8～16V
- Rated Charge Current
- 5A
- Rated Discharge Current
- 5A
- Max. PV Open Circuit Voltage
- 30V
- Equalization Voltage
- Sealed:14.6V,Flooded:14.8V
- Boost Voltage
- Gel:14.2V,Sealed:14.4V,Flooded:14.6V
- Float Voltage
- Gel/Sealed/Flooded:13.8V
- Low Voltage Reconnect Voltage
- Gel/Sealed/Flooded:12.6V
- Low Voltage Disconnect Voltage
- Gel/Sealed/Flooded:11.1V
- Self-Consumption
- 12V≤5mA; 24V≤7mA
- Temperature Compensation
- -5mV/℃/2V
- Relative Humidity
- ≤95%,(N.C.)
- Enclosure
- IP20
- Grounding
- Common Positive
- Operating Temperature Range
- -35℃～50℃
- Dimensions(lxwxh)(mm)
- 109.7×65.5×20.8
- Weight
- 0.09kg
Highlights
- Series PWM charging mode
- LED indicator indicates battery situation
- Battery temperature compensation function
- Extensive electronic protection
- USB ports available (LS-EU series only)
- User friendly design buttons
- Industrial quality standard design
