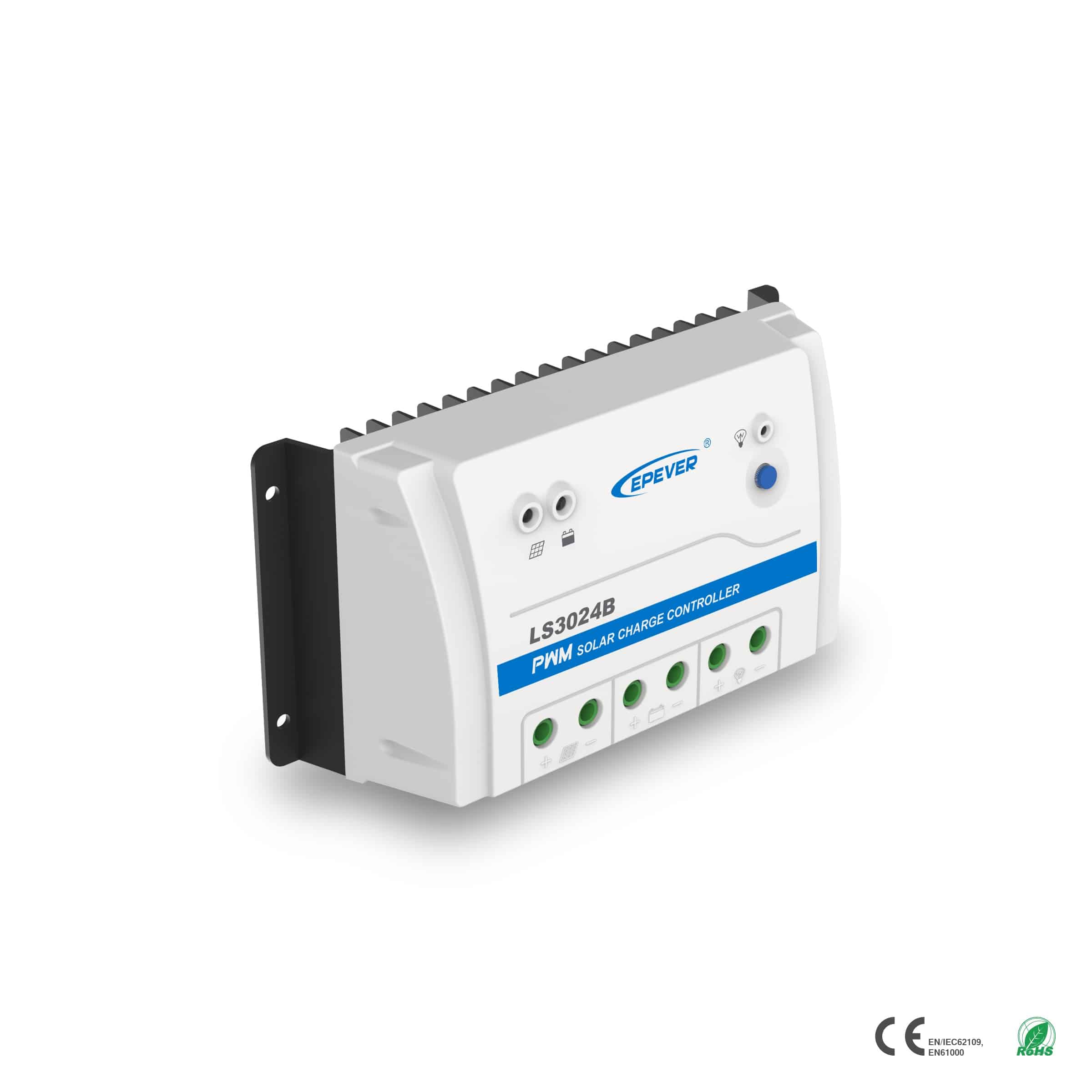

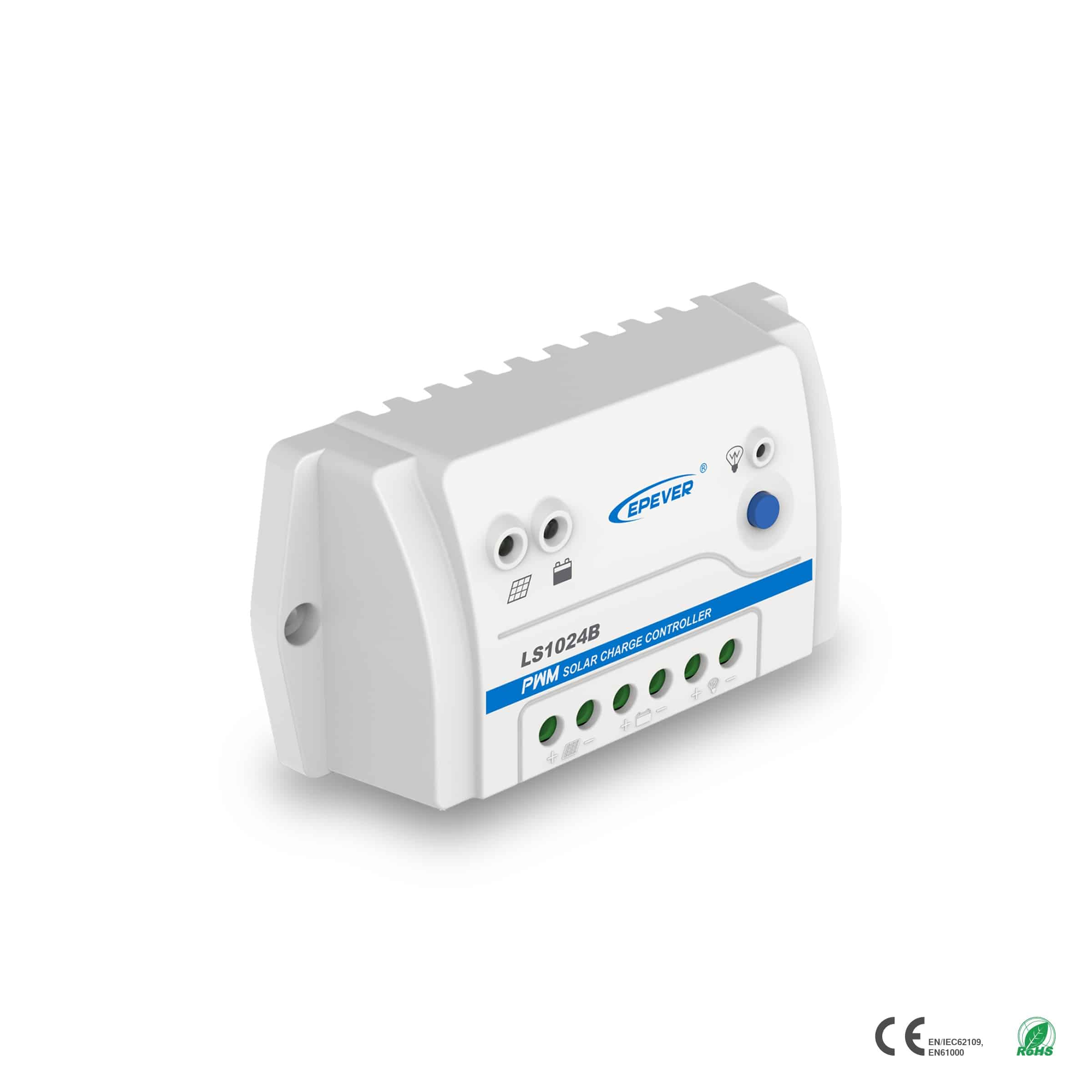

LS-B Series(10~30A) PWM Charge Controller
The LandStar-B series is a common positive PWM charge controller. Thanks to the RS485 interface, the parameters can be configured via COM port, APP, and PC software. It is widely applied to solar home systems, surveillance systems, etc.
- 2-year warranty
- Worldwide support
- Certified & compliant
Configure your model
Select Model
Application
Battery Type
Max PV Open Circuit Voltage
Communication
Charging Technology
Maximum PV Charging Current
Grounding
Display
System Nominal Voltage
Maximum Discharge Current
Buit-In LED Power Supply
Select every option to reveal the matching model.
Quantity
1
Ships from EU warehouse - typically 3–5 business days
Frequently Bought Together
Recommended combinations will appear here.
Specifications
- Nominal System Voltage
- 12/24VDC/Auto
- Battery Type
- Sealed(Default)/Gel/Flooded/User
- Battery Input Voltage Range
- 8～32V
- Rated Charge Current
- 10A
- Rated Discharge Current
- 10A
- Max. PV Open Circuit Voltage
- 50V
- Equalization Voltage
- Sealed:14.6V,Flooded:14.8V,User-defined:9-17V
- Boost Voltage
- Gel:14.2V,Sealed:14.4V,Flooded:14.6V,User-defined:9-17V
- Float Voltage
- Gel/Sealed/Flooded:13.8V,User-defined:9-17V
- Low Voltage Reconnect Voltage
- Gel/Sealed/Flooded:12.6V,User-defined:9-17V
- Low Voltage Disconnect Voltage
- Gel/Sealed/Flooded:11.1V,User-defined:9-17V
- Self-Consumption
- ≤8.4mA/12V;≤7.8mA/24V
- Temperature Compensation
- -3mV/℃/2V (default)
- Relative Humidity
- ≤95% (N.C.)
- Enclosure
- IP30
- Communication Interface
- RS485(RJ45)
- Grounding
- Common Positive
- Operating Temperature Range
- -35℃～50℃
- Dimensions(lxwxh)(mm)
- 138.6×69.3×37
- Net Weight
- 0.13kg
Highlights
- Series PWM charging Mode
- Multiple load control modes
- Full load operation within the working temperature range
- Extensive electronic protection
- Variety optional accessories
- Standard Modbus communication protocol with RS485 interface
