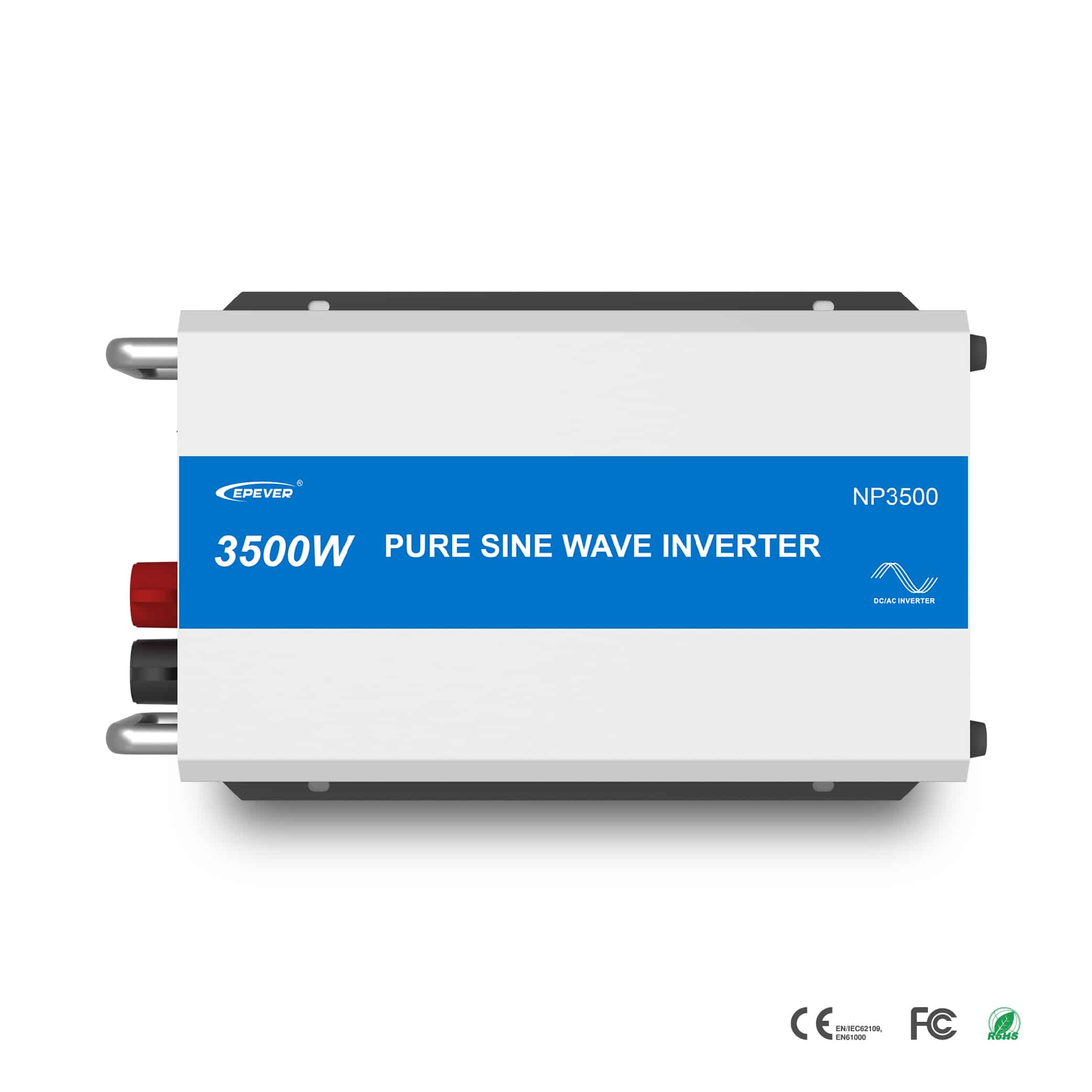

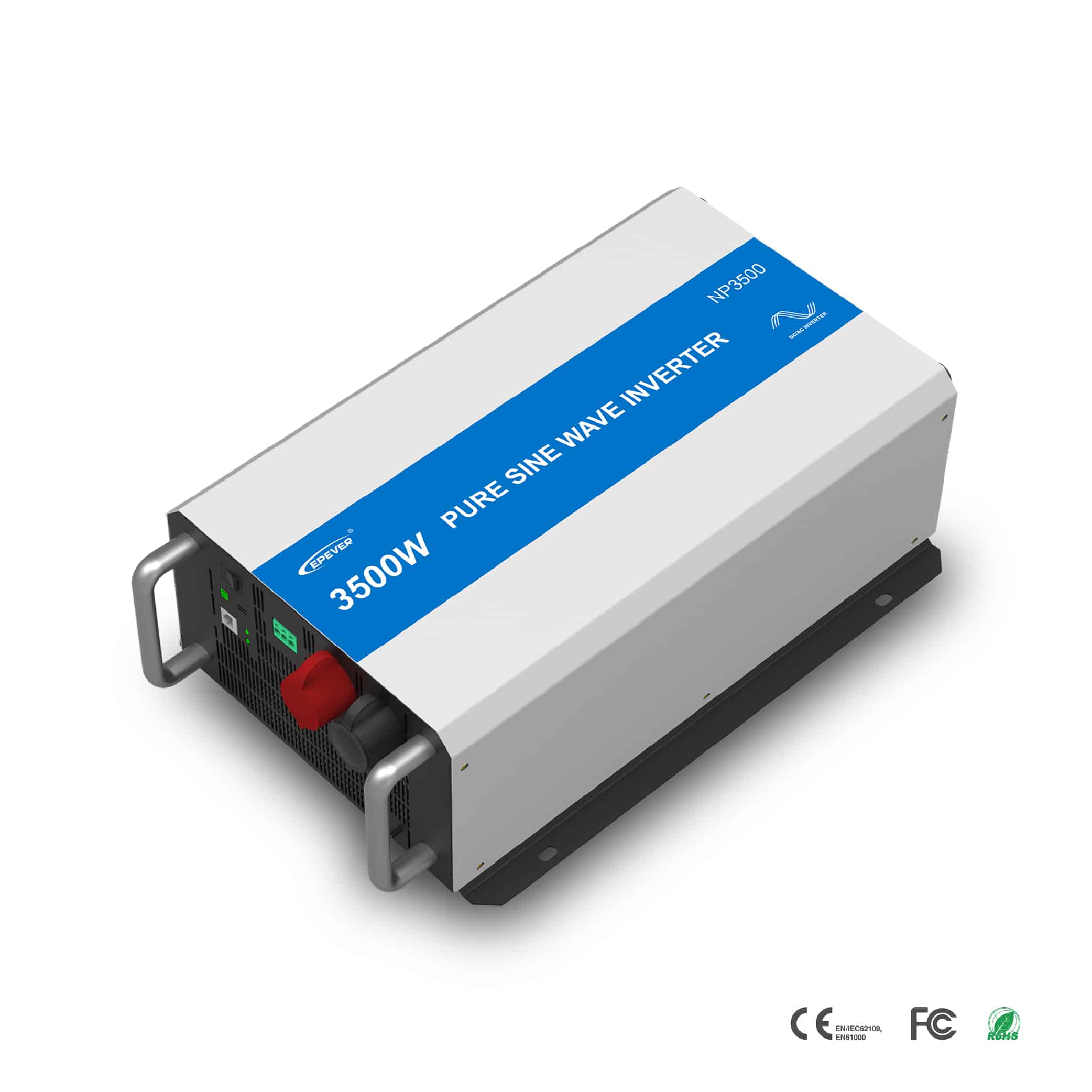

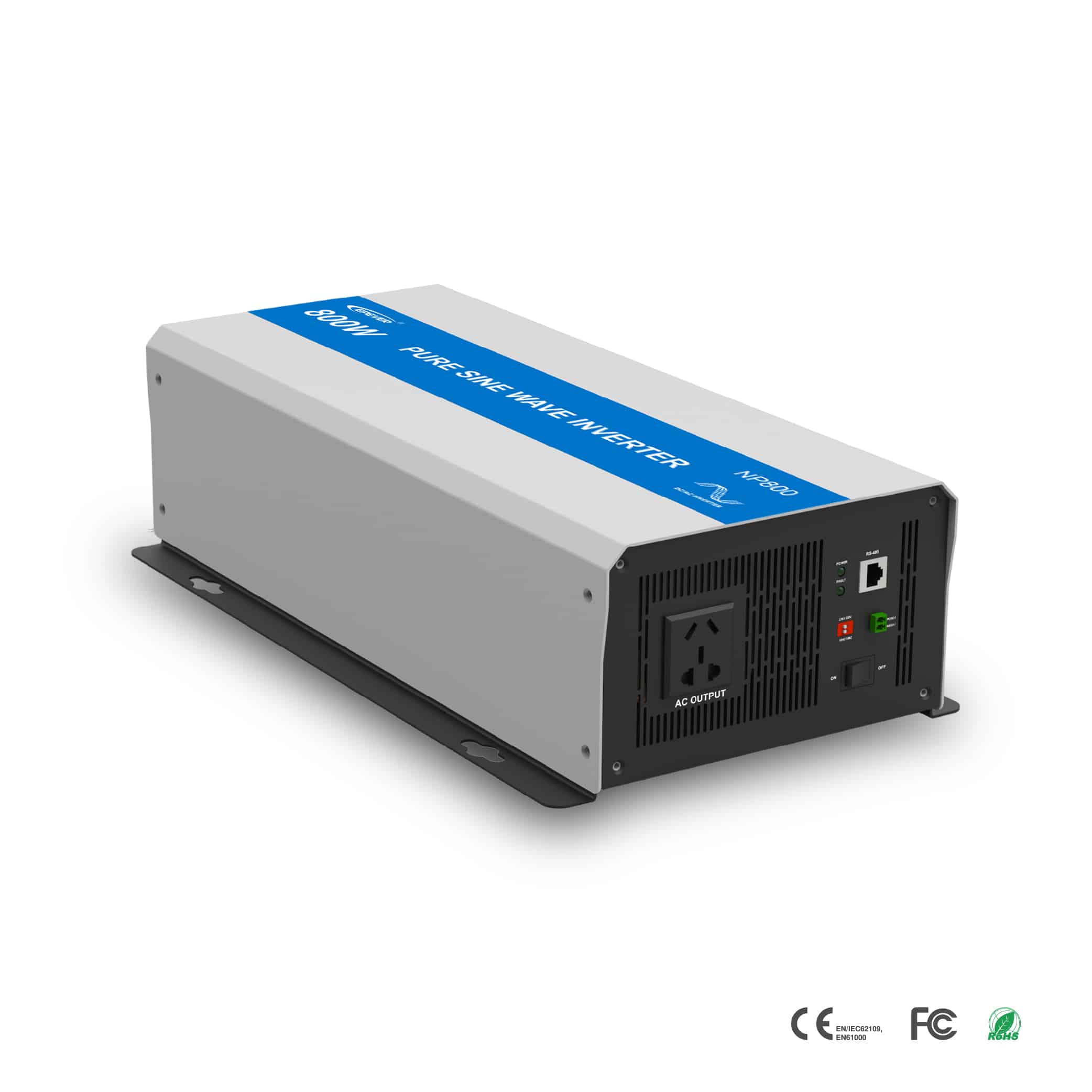

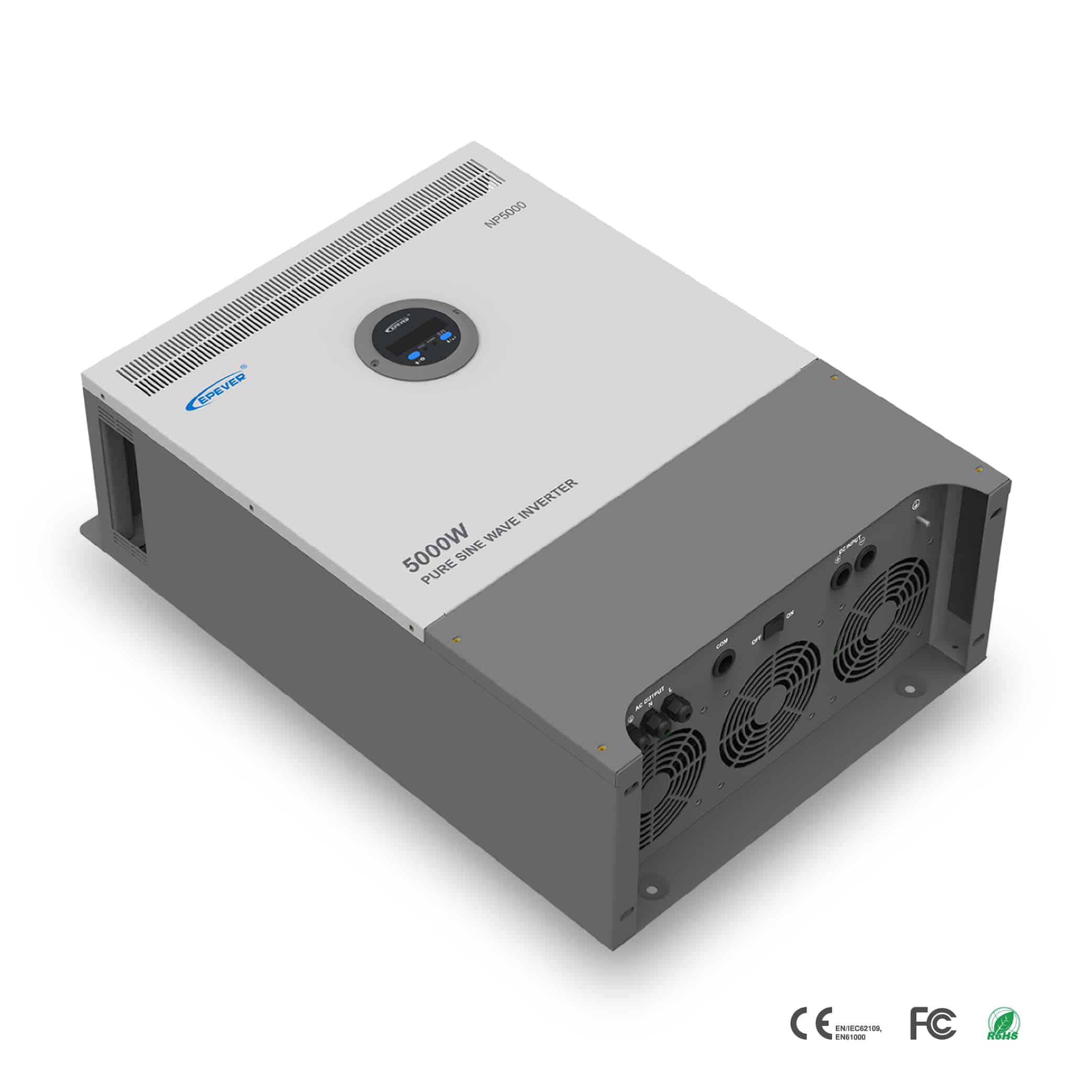

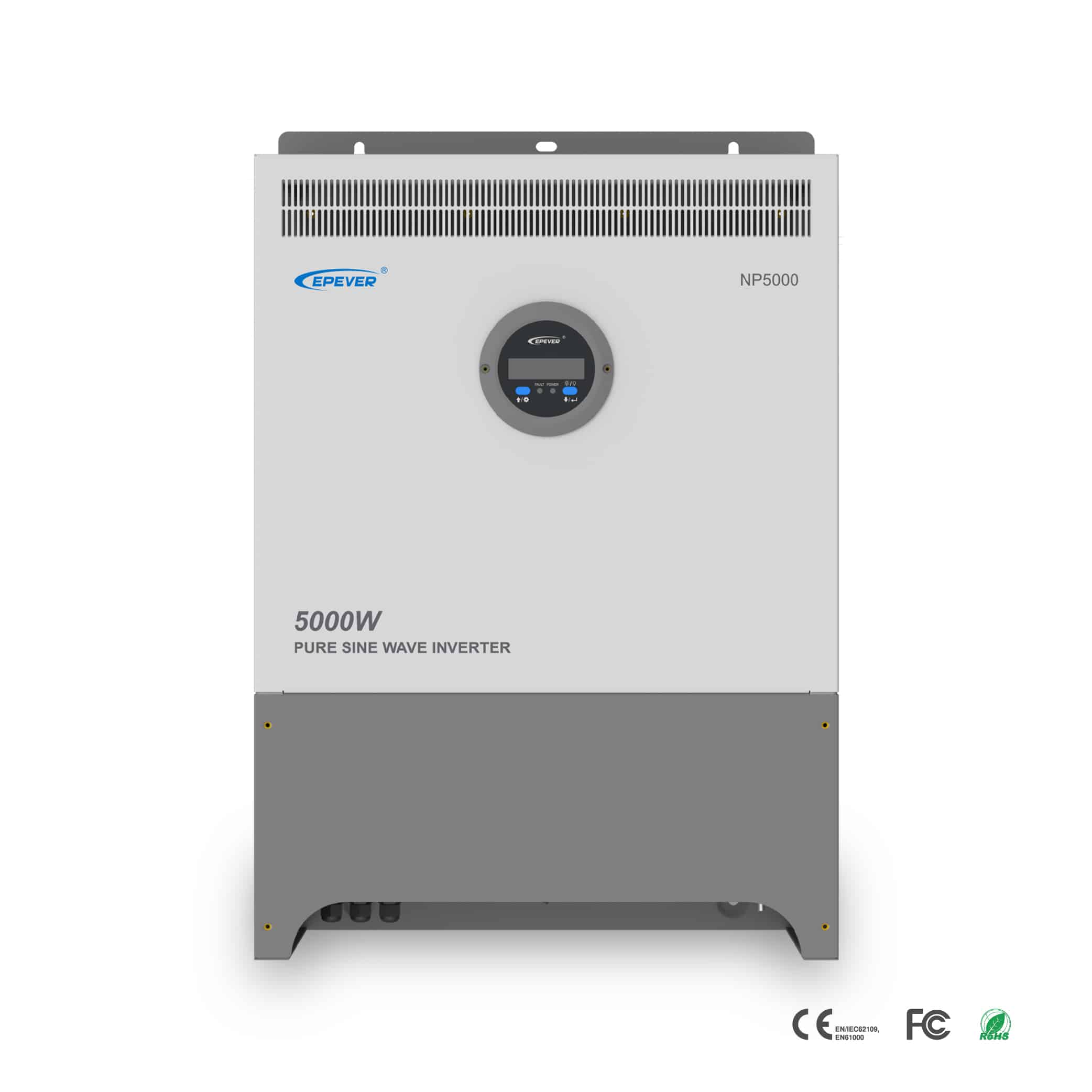

NPower Series(220/230VAC) 260~5000W Pure Sine Wave Inverter
NPower series is a low-frequency pure sine wave inverter that can convert 12/24/48VDC to 220/230V AC and power the AC loads. It has a stronger ability to work with impact load. Ranging from 260W to 5000W, Npower is compatible with lithium-ion batteries perfectly and suits the system which requires high reliability.
- 2-year warranty
- Worldwide support
- Certified & compliant
Configure your model
Select Model
Battery Type
Inverter Output Voltage
Inverter Type
Continuous Output Power
System Nominal Voltage
Output Voltage
Select every option to reveal the matching model.
Quantity
1
Ships from EU warehouse - typically 3–5 business days
Frequently Bought Together
Recommended combinations will appear here.
Specifications
- Continuous Output Power
- 2500W@25℃2500W@45℃
- Surge Power
- 5000W
- Output Voltage
- 220/230VAC(-8%~+3%)
- Output Frequency
- 50/60Hz±0.2%
- Output Wave
- Pure sine wave
- Output Distortion Thd
- THD≤5%(Resistive load)
- Load Power Factor
- 0.2-1(Load VA ≤ Continuous output power)
- Rated Input Voltage
- 12VDC
- Input Voltage Range
- 10.8~16VDC
- Output Efficiency Of 80% Rated Power
- 87%
- Max. Rated Efficiency
- 85%
- Max. Output Efficiency
- 90%(700W)
- No-Load Current
- ＜3.0A
- Static Loss
- ＜0.6W@12V
- RS485 Com. Port
- 5VDC/300mA(Non-isolated)
- Dimension(lxwxh)
- 584×393×175mm
- Mounting Dimension
- 350×372mm
- Net Weight
- 32kg
- Operating Temperature Range
- -20℃~+45℃(Full load)
- Relative Humidity
- < 95%(N.C.)
- Enclosure
- IP20
Highlights
- Adoption of advanced SPWM technology, pure sine wave output
- Adopt voltage and current double closed-loop control to enhance the load capacity
- The input and output adopt completely isolated inverter technology with high reliability
- The input adopts an anti-surge design to meet the special requirements of surge limitation of the lithium battery
- The output adopts excellent EMC design to prevent interference of connected equipment
- Output voltage 220/230VAC and frequency 50/60Hz optional
- Extensive protections: input reverse polarity, input overvoltage, input low voltage, output overload and short circuit, overheating
- RS485 port can connect the communication module, realize remote start/stop inverter and monitor the running status via the APP or PC software
- Set the inverter’s ID via the APP or PC software to monitor several inverters
- The case is designed with the galvanized board, with high strength and strong corrosion resistance
