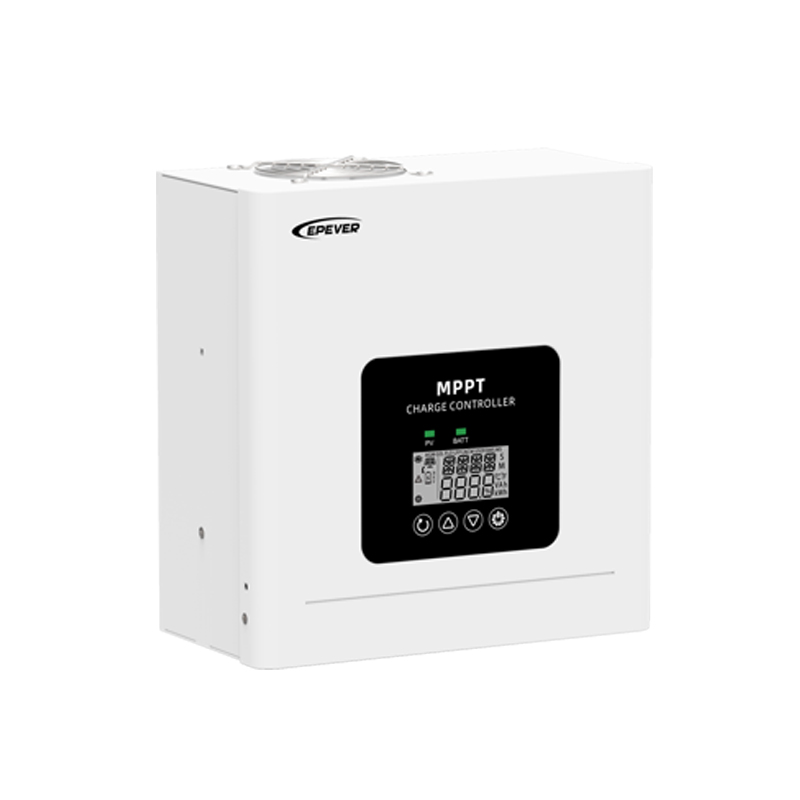

TEP Series (60~100A) MPPT Charge Controller
The TEP Series is a parallel MPPT controller designed for high-current solar charging up to 100A. It supports up to six units working together for flexible system expansion. With advanced MPPT tracking, high conversion efficiency, and strong compatibility with lithium and lead-acid batteries, it ensures stable performance across various applications. RS485 and CAN communication enable remote monitoring through WiFi, Bluetooth, or 4G modules, making the TEP Series ideal for off-grid, RV, and industrial energy systems.
- 2-year warranty
- Worldwide support
- Certified & compliant
Configure your model
Select Model
Number Of Mppts
Rated Charging Power
Battery Type
Rated Charging Current
DC Load Output
Max PV Open Circuit Voltage
Communication
Charging Technology
Grounding
Display
System Nominal Voltage
Select every option to reveal the matching model.
Quantity
1
Ships from EU warehouse - typically 3–5 business days
Frequently Bought Together
Recommended combinations will appear here.
Specifications
Highlights
- Compatible with 12V/24V/48V systems; Charging current: 60A-100A
- Supports two PV inputs : Max. MPPT tracking efficiency: 99.5%; Max. Conversion efficiency: 98.5%
- Compatible with AGM, Gel, Flooded, LiFePO4 batteries, etc.
- No battery mode: Enables direct load supply with sufficient PV energy
- Built-in CAN parallel communication port; Max. 6-unit parallel operation (with/without battery)
- Built-in independent BMS communication port; Reliable battery charge/discharge management
- Isolated RS485: Optional Bluetooth, WiFi, TCP or 4G modules
- Real-time data recording, event logging, and power statistics function
- Compartment design for superior dust resistance
- Compact and lightweight for versatile installation
